T.C.S. Pro
Total Sample Concentration System

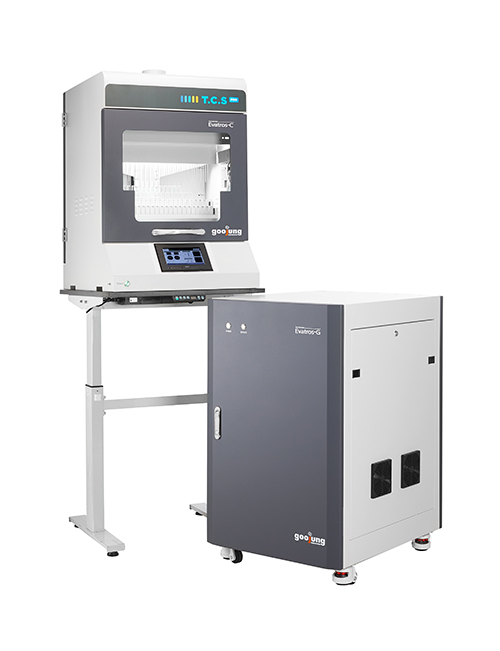

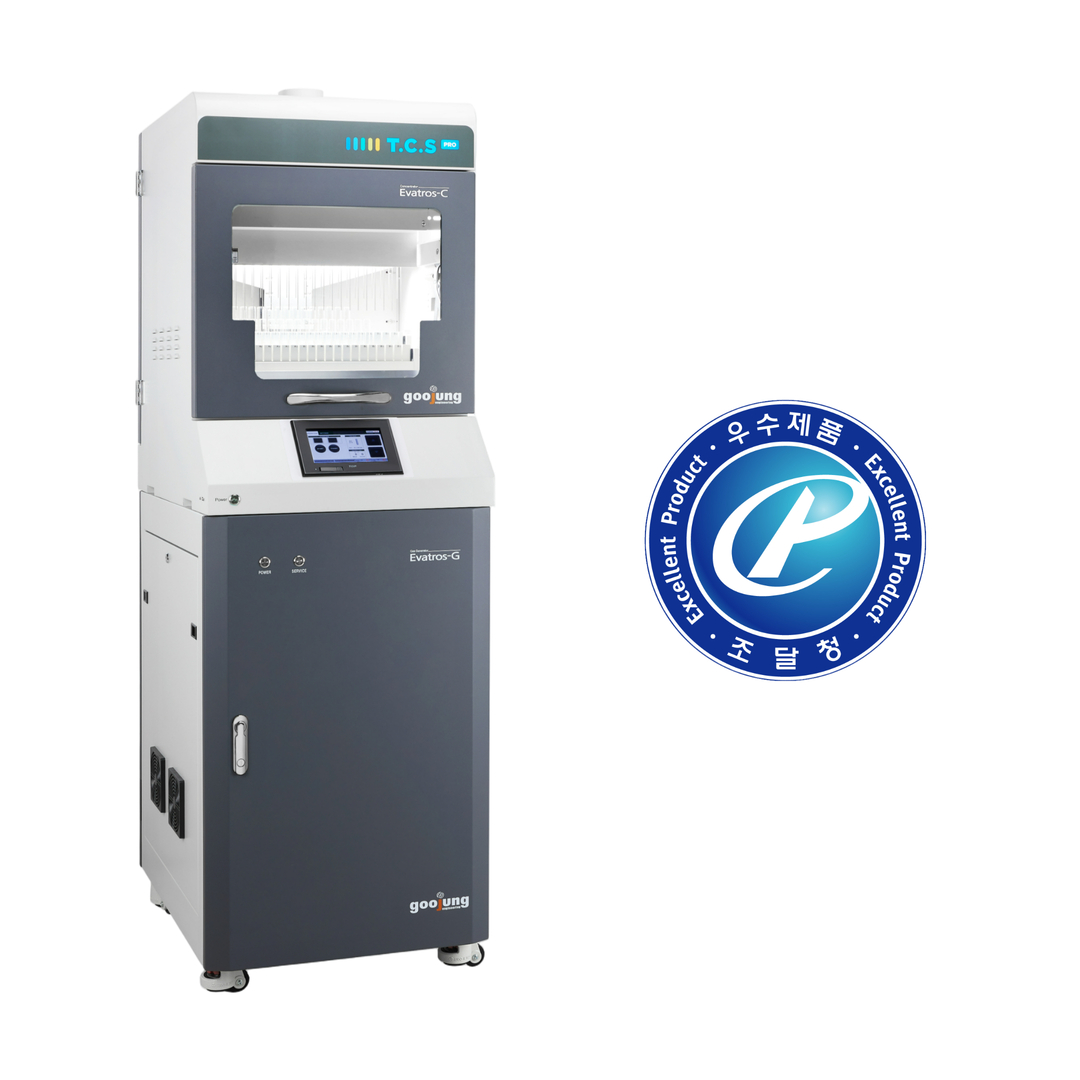

T.C.S™ Pro is total sample concentration system featuring an evaporator, hood function, and a gas generator.
T.C.S™ Pro can concentrate up to 48 samples based on 16mL test tube at the same time and customize test tube block production, covering a variety of test tube shapes or volumes.
T.C.S™ Pro can supply precise gas flow rate for each nozzle and the stably descending nozzles, which will result in high reproducibility of sample concentration.
Evatros T.C.S™ Pro - Total sample Concentration System
- One integrated system featuring an evaporator, hood function, and a gas generator
- Fully automated concentration system controlled by HMI software (Pro model only)
- Up to 48 sample concentration
- Independent gas supply control for each nozzle
- 5-way gas blowing nozzle drying the condensed solvent vapor on the inner wall of test tubes
- Aluminum test tube block with heating function (Ambient~80℃)

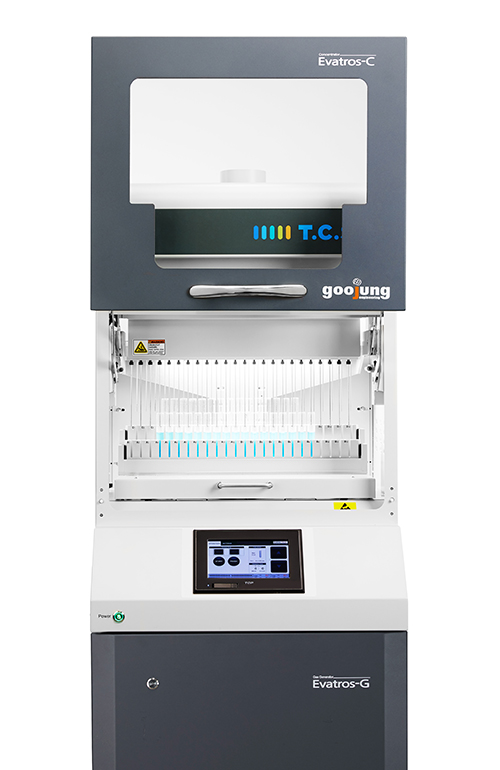

- Easy observation of the progress of sample concentration through the slits of the test tube block
- Possible customized test tube block production covering a variety of test tube shapes or volume
- Easily replaceable test tube block depending on the sizes of test tubes
- Convenient arrangement of test tubes in a test tube block on Pull & Push shelf
- Automatic gas shut-off with audible alarm when operation or timer setting time is finished
- Built-in hood venting out toxic gas and unpleasant smell
- Option 1: Acid-proof option recommendable when using acid solvent
- Option 2: UV blocking option for samples sensitive to UV
Application
- Food Industry
- Pharmaceutical Industry
- Forensic science
- Chemical Industry
- Water Quality Environment
- Agriculture and Fishery products
- Veterinary research institute
- Cosmetic Industry
Evaporator specification
| Model | Evatros C Pro | Evatron C Pro |
| Part Number | EC-1648P | EC-5108P |
| No. of samples | 48 | 8 |
| Diameter of test tube block holes(mm) | 16,3 | 51 |
| Replaceable test tube block | Yes | No |
| No. of nozzles | 48 | 24* |
| Heating method | Aluminum test tube block (No need to use water) | |
| Temperature range | Ambient ~ 80℃ (Precision: ±0.3%) | |
| HMI touch panel | 7” touch screen | |
| Temperature setting mode | Dual or Single Mode** | |
| No. of methods | 10 | |
| Electrical requirements | 220[V], 50/60[Hz], 2.5[A] | |
| Dimensions (mm) | 920(H) x 640(W) x 750(D) | |
| Weight (Kg) | 110 | 119 |
| Gas consumption | 2 L/min @ 30 psi per a nozzle | |
*3 nozzles blow gas out into a test tube.
** Temperature can differently be set between the 1st tier test tube block and 2nd tier test tube block for the dual mode.
Gas generator specification
| Model | Evatros G | Evatros G | Evatros G |
| Part Number | EN-0600 | EA-3000 | ES-3600* |
| N2 Flow rate | 60L/min | - | 60L/min |
| Dry Air Flow rate | - | 120L/min | 120L/min |
| Pressure | 30psi | 30psi | 30psi |
| Hollow fiber membrane (N2) | 0 | - | 0 |
| Dry point membrane (Air) | - | 0 | 0 |
| Phthalate | None | ||
| Noise level | 50[dB] | ||
| Electrical requirements | 220[V], 50/60[Hz], 8[A] | ||
| Dimensions (mm) | 1000(H) x 640(W) x 750(D) | ||
| Weight (Kg) | 160 | 160 | 155 |
* A button can switch a gas mode between N2 and Dry Air.
