Goojung
Evatros Mini
Benchtop Sized Evaporator

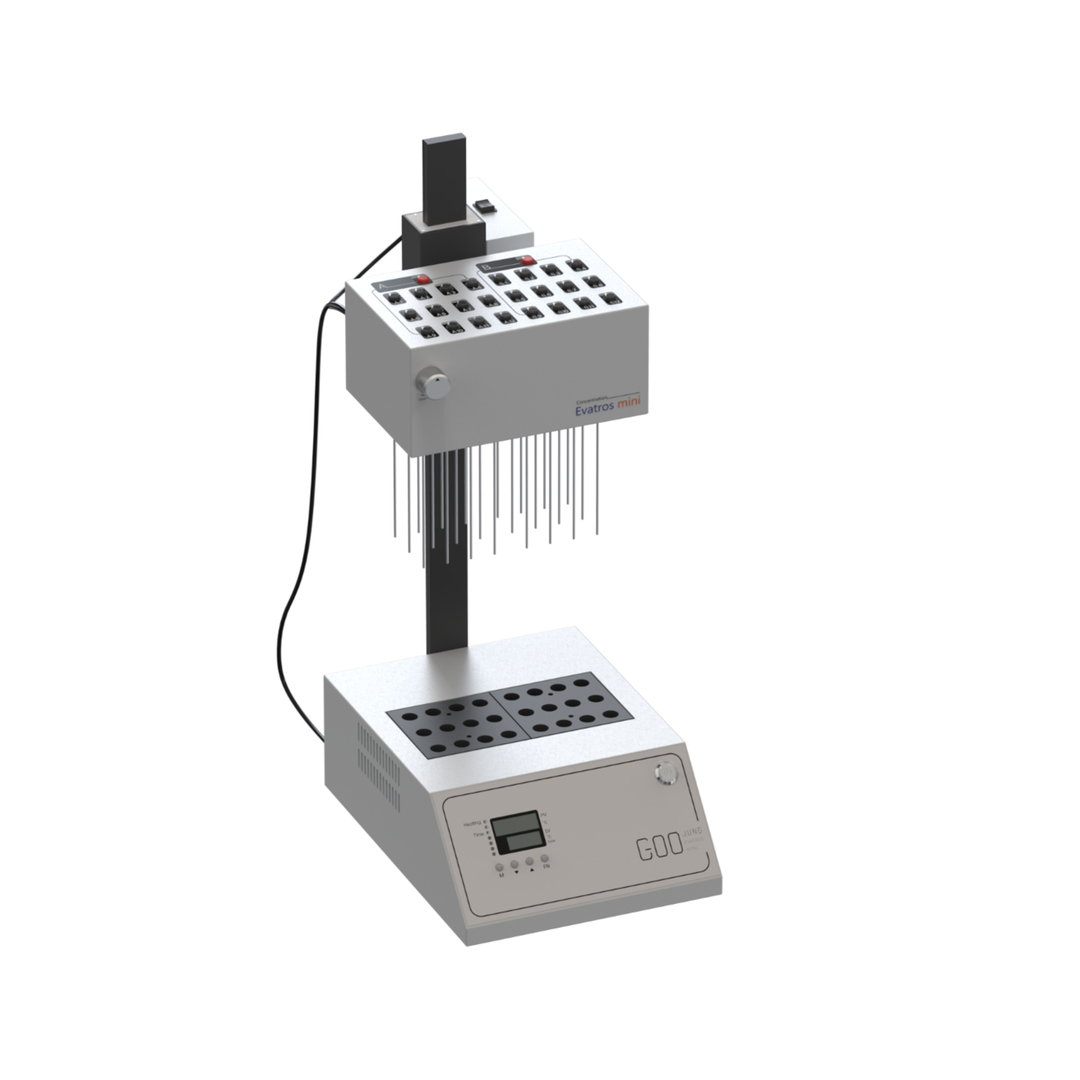

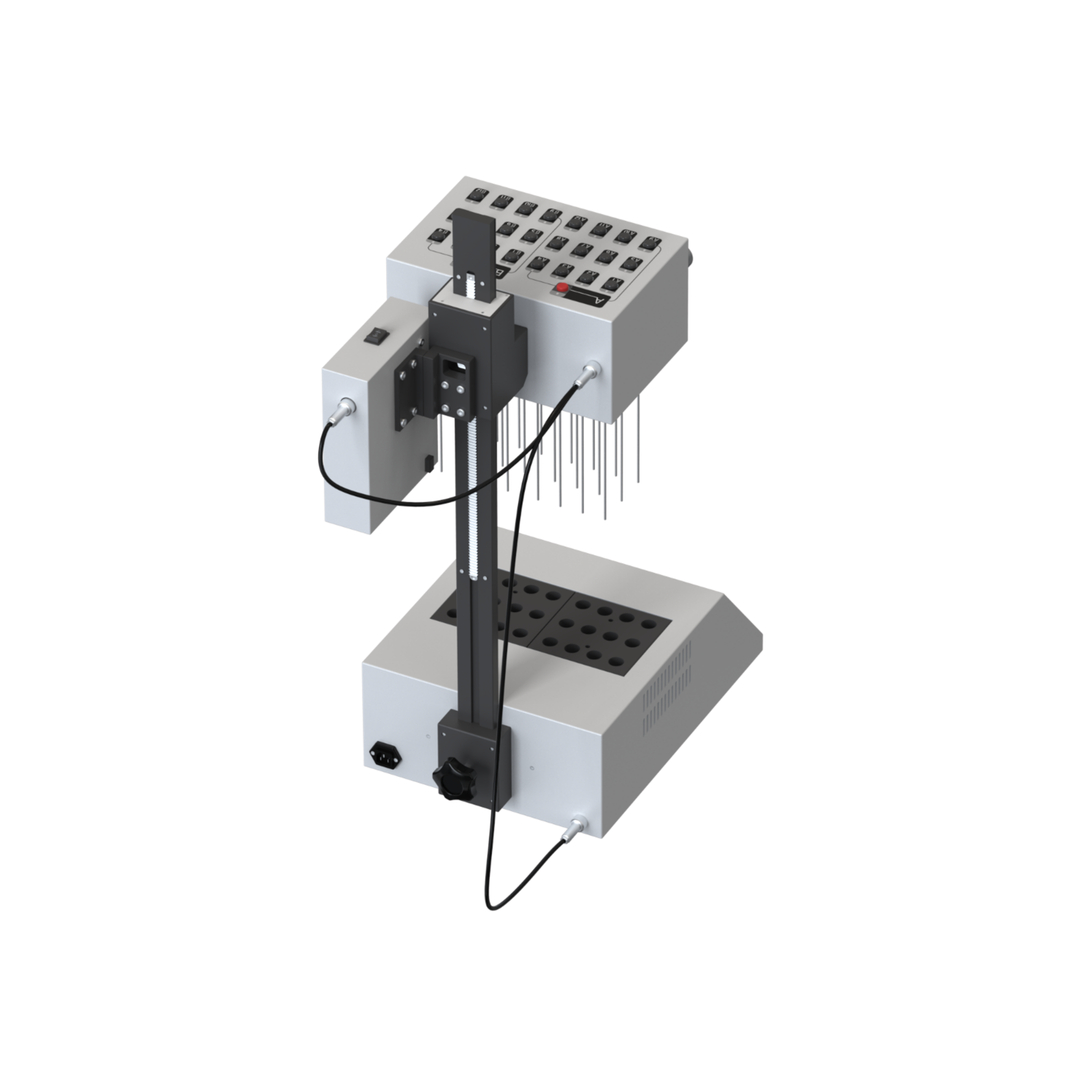

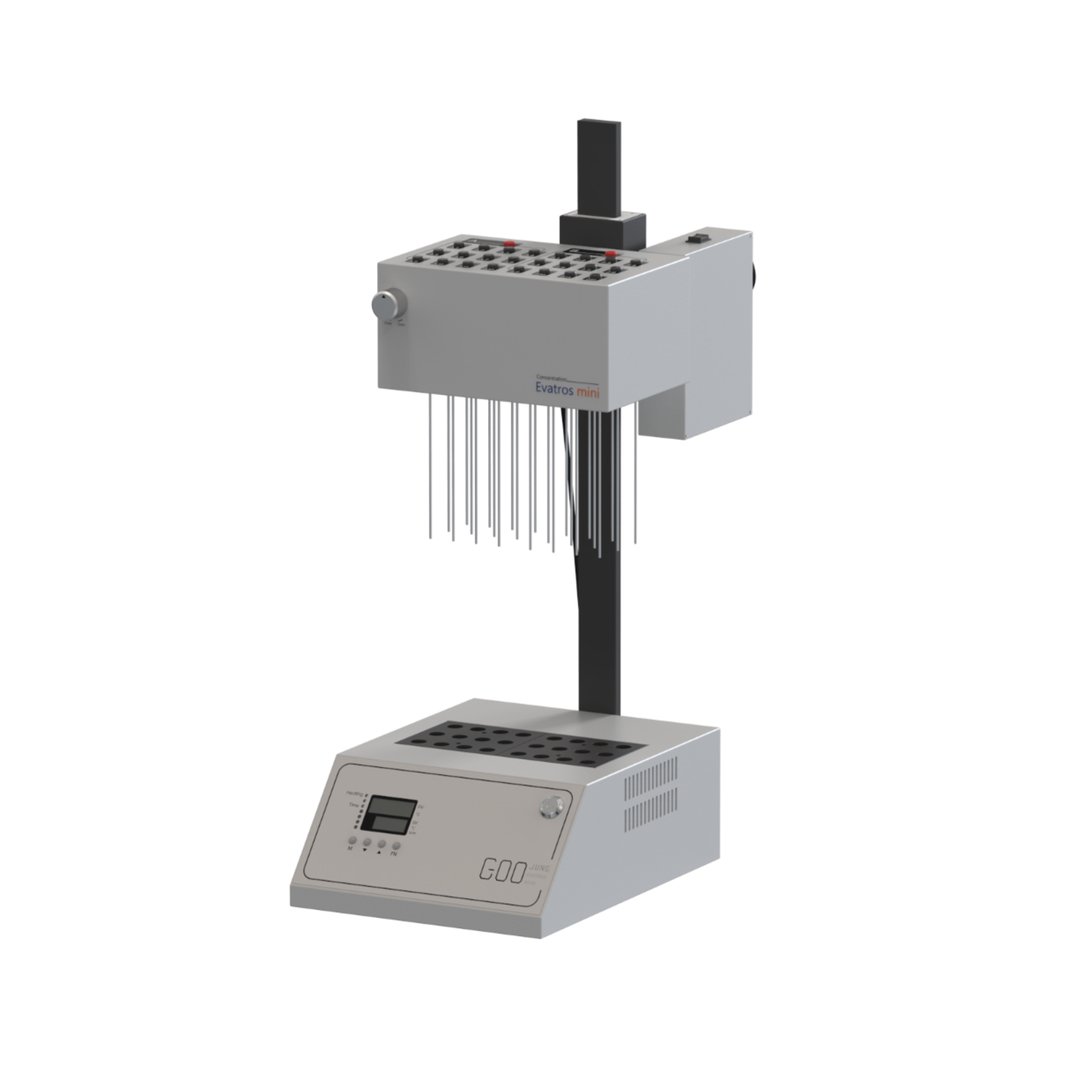

Evatros mini, Evaporator is a gas blowing type of solvent evaporator which can be installed in the hood. Up to 24 samples can be concentrated, and each 24 nozzles can independently be utilized through the on/off switch. The speed controller also controls the overall gas flow rate.
With the Semi-Auto system upgrade, the height adjustment is made easy and convenient.
- Up to 24 Sample Concetration
- Individual on/off switches reducing consumption of gas
- Easy and Convenient to set temperature and time by LED Display Operation
- 5-way gas blowing nozzles maximizing the efficciency of sample concentration
- Aluminum block designed with Thermal Protector and Temperature Sensor controls temperature
- Timer with alarm to prevent samples from over-drying
- Accurate gas flow control through speed controller
- Easy height adjustment through the Semi-Auto system upgrade (NEW)
Application
- Food Industry
- Pharmaceutical Industry
- Forensic science
- Chemical Industry
- Water Quality Environment
- Agriculture and Fishery products
- Veterinary research institute
- Cosmetic Industry
| Model | Evatros Mini |
| Part Number | EM-1624 |
| Nozzle | 24 nozzles with 5 holes |
| Gas Supply Control | Each nozzle can be individually controlled with on/off buttons |
| Test tube Diameter | Round bottom 16.3mm, 10~16ml (standard) |
| Minimum Gas Inlet | Nitrogen, Dry Air 30L/min @60 psi |
| Heating method | Aluminum heating block |
| Heating block Temp. | Ambient ~ 80℃ |
| Temp. Accuracy | ± 0.5℃ |
| Timer | 1 min ~ 99h 59min |
| Electronic Requirement | 220[V], 50/60[Hz], 1.5{A} |
| Overall Dimensions (cm) | 54.5(H) x 24(W) x 35.5(D) |
| Weight (kg) | 12 |
